Can Am 250 Pre-Mix MX Rotax Engine Seal, Gasket and O'Ring Kit - Air Cooled Only, with VITON seals

Default Title
-->

Sold Out



Seal and O'Ring Kit for Can Am 250 MX Pre-Mix Rotax Engines, air cooled only, with Viton Seals for the crankshaft. Viton Seals are a higher quality seal and can withstand higher heat.

Can also be used on Kramer, SWM, Armstrong, ATK, CCM, Jawa, Puch and all other bikes with Rotax engines.

Parts can be sold separately, create your order by adding items to the cart, then let us know which of the following you want added via email and we will revise the invoice and resend it to you for payment. Or email us directly stating your order.

CAN-SOG-250MXPREMIXKITVS

We also have the Bearing kits for this bike, click here for more details.

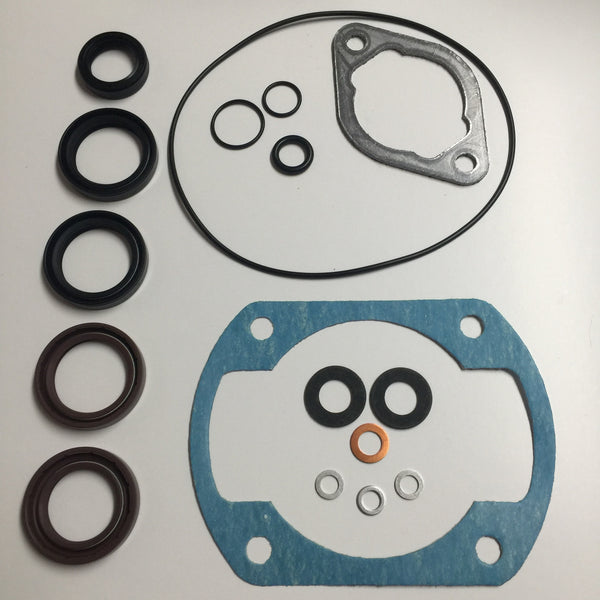

Kit Includes;

Seals (VITON):

  • 1 - Crankshaft on Flywheel Side MX - #5 Diagram 1
  • 1 - Crankshaft on Rotary Valve Cover - #28 Diagram 1
  •

    Seals (Nitrile):

    • 1 - Transmission Output Shaft - #6 Diagram 1
    • 1 - Kickstart Shaft - #16 Diagram 3

    O'Rings:

    • 1 - Disc Valve Cover - #29 Diagram 1
    • 1 - Inner Kickstart
    • 1 - Outer Kickstart
    • 1 - Output Shaft Bushing

     Gaskets

    • 1 - Cylinder - #22 Diagram 2
    • 1 - Exhaust - #31 Diagram 2

    2 Fibre Gaskets:

    • 1 - Engine Drain Plug - #41 Diagram 1
    • 1 - Kickstarter Stop - #23 Diagram 1

    4 Metal Gaskets:

    • 1 - Crankcase Drain (Copper) - #25 Diagram 1
    • 1 - Oil Level Plug Seal (Aluminum) - #32 Diagram 3
    • 2 - Clutch Cover Seals (Aluminum - #28 Diagram 3
