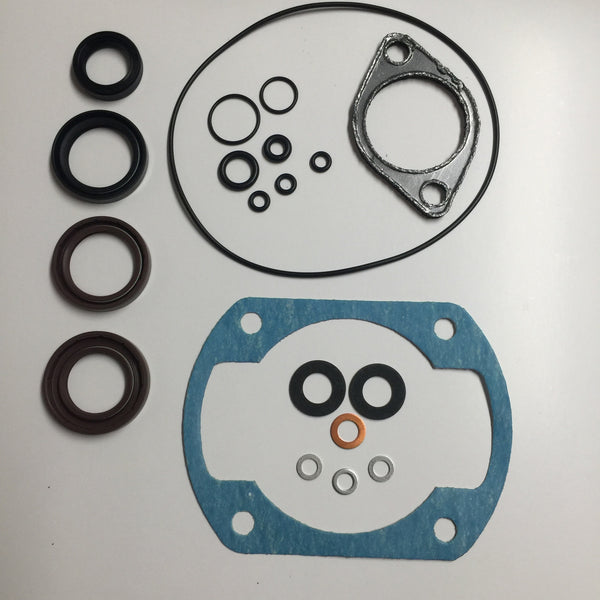

Can Am 125/175 Rotax Engine Seal, Gasket and O'Ring Kit, Air Cooled Only with VITON Seals

Default Title
-->

$83.95



Seal and O'Ring Kit for all Can Am 125 and 175 Rotax Engines, air cooled only with Viton Seals for the crankshaft. Viton Seals are a higher quality seal and can withstand higher heat.

Can also be used on Kramer, SWM, Armstrong, ATK, CCM, Jawa, Puch and all other bikes with Rotax engines.

Parts can be sold separately, create your order by adding items to the cart, then let us know which of the following you want added via email and we will revise the invoice and resend it to you for payment. Or email us directly stating your order.

We also have the bearing kit available, click here for more details.

CAN-SOG-125175KITVS

Kit Includes;

Seals (VITON):

  • 1 - Crankshaft on Flywheel Side - #5 Diagram 1
  • 1 - Crankshaft on Rotary Valve Cover - #28 Diagram 1
  •

    Seals (Nitrile):

    • 1 - Transmission Output Shaft - #6 Diagram 1
    • 1 - Kickstart Shaft - #16 Diagram 3

    O'Rings:

    • 1 - Disc Valve Cover - #29 Diagram 1
    • 1 - Inner Kickstart
    • 1 - Outer Kickstart
    • 1 - Output Shaft Bushing

    O'Rings for Oil Injection Engines:

    • 1 - Clutch Cover - #27 Diagram 1
    • 1 - Engine Case - #27 Diagram 1
    • 1 - Disc Cover to Clutch Cover - #33 Diagram 1
    • 1 - Oil Guide Plate (on Crank Shaft) - #37 Diagram 2

     Gaskets

    • 1 - Cylinder - #22 Diagram 2
    • 1 - Exhaust - #31 Diagram 2

    2 Fibre Gaskets:

    • 1 - Engine Drain Plug - #41 Diagram 1
    • 1 - Kickstarter Stop - #23 Diagram 1

    4 Metal Gaskets:

    • 1 - Crankcase Drain (Copper) - #25 Diagram 1
    • 1 - Oil Level Plug Seal (Aluminum) - #32 Diagram 3
    • 2 - Clutch Cover Seals (Aluminum - #28 Diagram 3
