We offer 4 different seal kits,regular (which fits all bike models), or bike specific VITON kits. Please use the drop down menu to select the one you need.

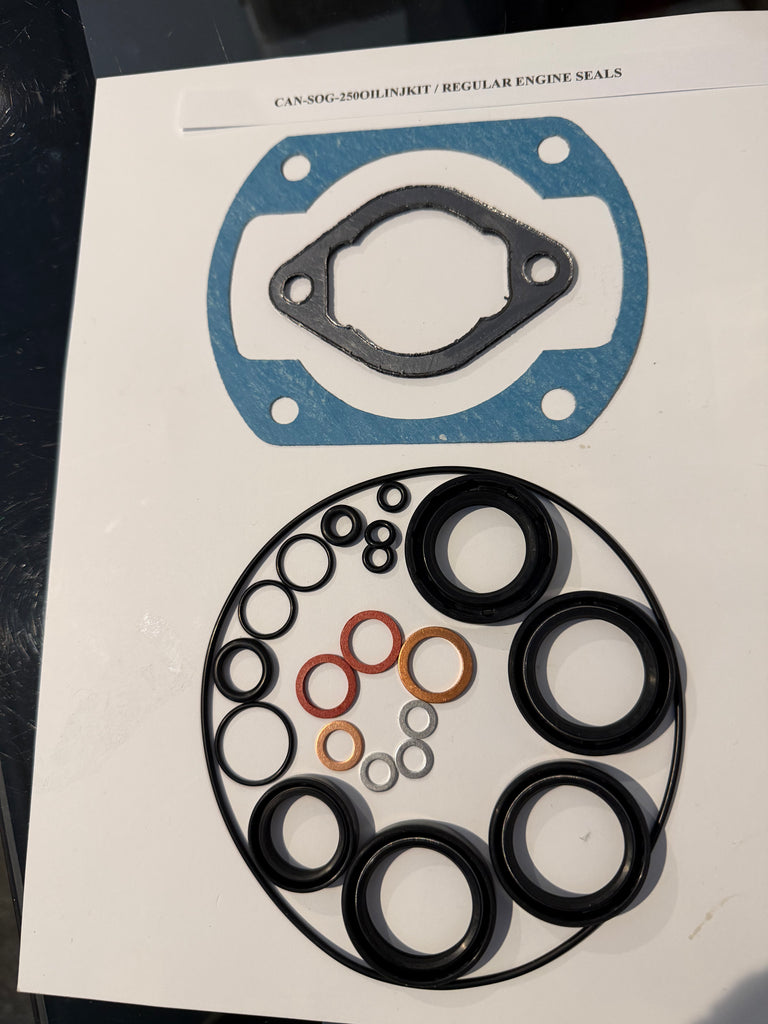

CAN-SOG-250OILINJKIT  / Regular engine seals

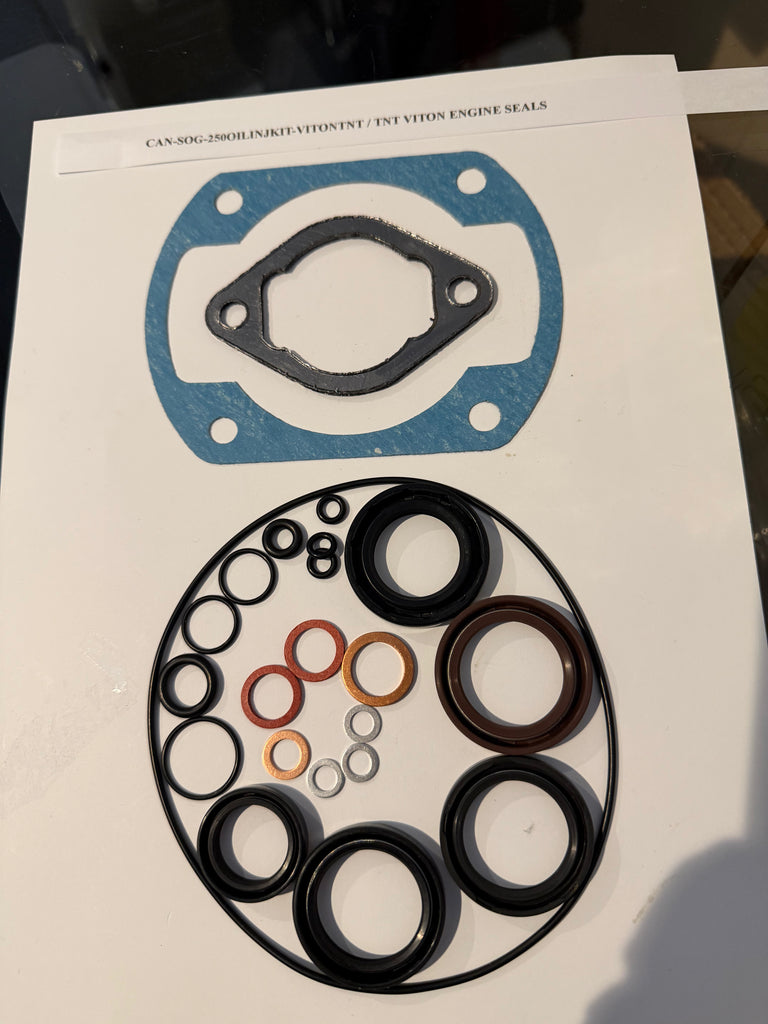

CAN-SOG-250OILINJKIT-VITONTNT / Viton seals for TNT

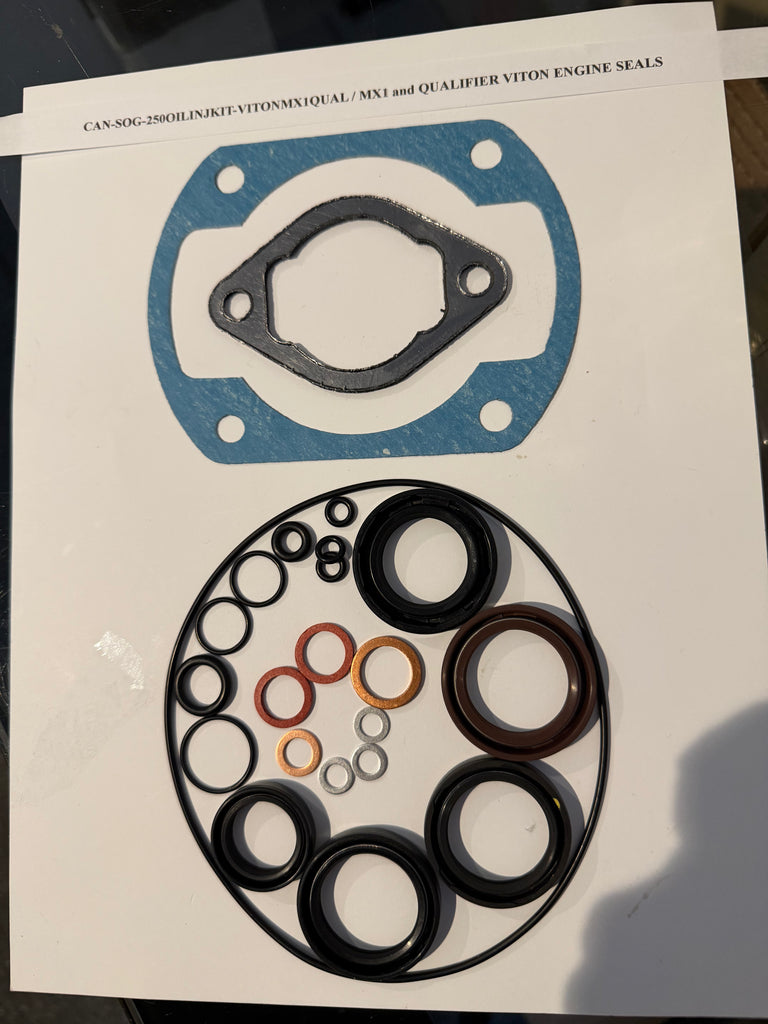

CAN-SOG-250OILINJKIT-VITONMX1QUAL / Viton Seals for MX1 and Qualifier

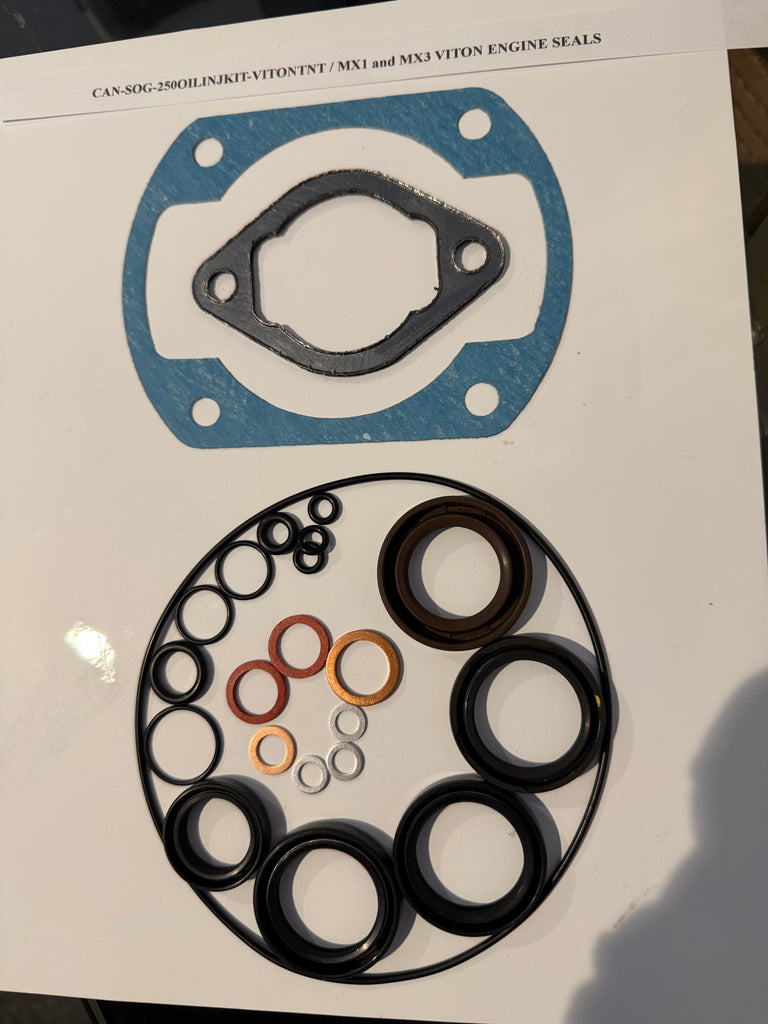

CAN-SOG-250OILINJKIT-VITONMX23 / Viton Seals for MX2 and MX3

....................................................................................................................................

We now provide 2 (was 1) inner kick start o'rings.

We have NOS head shim, click here for more details.

We also have NOS Exhaust Gasket, click here for more details.

This kit comes with remade exhaust gasket.

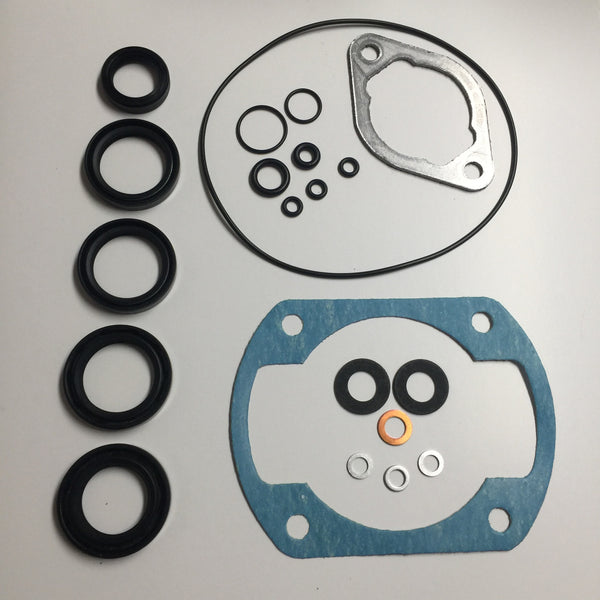

Seal and O'Ring Kit for Can Am 250 Oil Injection Rotax Engines, air cooled only.

Can also be used on Kramer, SWM, Armstrong, ATK, CCM, Jawa, Puch and all other bikes with Rotax engines.

Parts can be sold separately, create your order by adding items to the cart, then let us know which of the following you want added via email and we will revise the invoice and resend it to you for payment. Or email us directly stating your order.

CAN-SOG-250OILINJKIT -Regular or Viton, use drop down menu to select the right kit.

We have the Bearing Kit for this bike model, click here for more details.

Kit Includes;

Seals (Nitrile):

• 1 - Crankshaft on Flywheel Side MX2 - #5 Diagram 1
• 1 - Crankshaft on Flywheel Side - MX1/TNT/Qualifier - #5 Diagram 1
• 1 - Crankshaft for Rotary Valve Cover - #6 Diagram 1
• 1 - Transmission Output Shaft - #6 Diagram 1
• 1 - Kickstart Shaft - #16 Diagram 3

O'Rings:

• 1 - Disc Valve Cover - #29 Diagram 1
• 2 - Inner Kickstart
• 1 - Outer Kickstart
• 1 - Output Shaft Bushing

O'Rings for Oil Injection Engines:

• 1 - Clutch Cover - #27 Diagram 1
• 1 - Engine Case - #27 Diagram 1
• 1 - Disc Cover to Clutch Cover - #33 Diagram 1
• 1 - Oil Guide Plate (on Crank Shaft) - #37 Diagram 2

 Gaskets

• 1 - Cylinder - #22 Diagram 2
• 1 - Exhaust - #31 Diagram 2

2 Fibre Gaskets:

• 1 - Engine Drain Plug - #41 Diagram 1
• 1 - Kickstarter Stop - #23 Diagram 1

4 Metal Gaskets:

• 1 - Crankcase Drain (Copper) - #25 Diagram 1
• 1 - Oil Level Plug Seal (Aluminum) - #32 Diagram 3
• 2 - Clutch Cover Seals (Aluminum - #28 Diagram 3
